(1)Housing: F1 with motor mount type
Shaft: Solid shaft, 10 mm diameter
Bearing: Cantilever (only atmosphere side)
Magnetic fluid: Anti-corrosion
Water Cooling: Yes
Shaft Option: Keyway
FMB-010-CFWK
Vacuum feedthrough Seal
표준 생산제품
업그레이드된 표준 생산품
- Rigaku는 "원하는 씰은 바로 쉽게 구할수 있다" 이라는 컨셉으로 자석씰의 규격제품 라인업을 재정비 했습니다.
- 예전의 10 시리즈 57 기종에서 15 시리즈 72 기종으로 제품 라인업을 강화하고, 옵션에 따른 샤프트 모양 사용자 정의 등 마그네틱 씰 규격 품이 더 편리하게 이용할 수 있게 되었습니다.
- 또한 비용 절감에 노력하였기 때문에 원하시는 적당한 가격으로 구입 가능합니다.
- 어떤 제품도 고객의 기대에 부응 할 수 있다고 자부하며 품질관리와 고객지원에 최선을 다하겠습니다.
생산 표준품 소개
카다로그 다운로드
규격품으로써 선택할 수 있는 풍부한 옵션
1. 청정 환경 대응 씰
고객의 요구가 많았던 분위기 쪽만 베어링을 배치한 외팔보 타입이 『 Cantilever 』규격 품에 추가 되었습니다. 더구나 낮은 증기압, 부식 방지용도 자성 유체를 표준 품으로 선택할 수 있게 되었고, 깨끗한 환경에 표준 대응하고 있습니다.
2. 간단한 모터 표준품 장착
Rigaku는 각 축의 모터 표준 제품으로 자석 씰같이 모터를 장착하기 위한 탭을 가진 자석 씰을 제공 했습니다. 탭은 이미 표준 제품의 하우징에 고객이 쉽게 자기씰하기 위하여 모터를 탑재할 수 있도록 했습니다. 샘플 다이어그램을 참조 하십시오. (아래) 우리는 모터, 모터 마운트, 커플링, 자석 씰부분의 결합 한 셋트도 판매를 하고 있습니다. 실장설계 및 생산 시간을 절약하고 장착면적절감을 달성 하는데 도움이 되기 바랍니다.
3. 마그네틱 씰 장착 및 연결 옵션을 사용할 수 있습니다
각종 설치 된 플랜지와 표준 품의 축 가장자리 옵션을 결합, 표준 제품의 다양 한 옵션 장착 플랜지, 커플링 샤프트 끝모양을 선택할 수 있습니다.
예를들면: Conflat Flange, Clamp Flange(Quick Coupling), Non Cut Shaft, Key grooved Shaft and Flat Cut Shaft.
4. 컴팩트한 디자인에 표준 제품에 롤러 베어링 크로스의 도입
Rigaku 마그네틱 씰의 길이를 줄이기 위해, 40 mm 직경의 hollow 샤프트, 크로스 롤러 베어링이 있으며 더 컴팩트한 디자인의 cantilever 시리즈 표준 제품의 크로스 롤러 베어링의 채용이 표준 부품으로 채택 합니다. Rigaku 자석씰은 보통보다 작은 싸이즈의 볼 베어링을 사용하여 제작 할 수 있습니다.
새로운규격품 형식 호칭설명
자기씰 고정 방법
형식들 호칭 "예"
(1)Housing: Flange
Shaft Hollow shaft, 20 mm diameter
Bearing: Vacuum side and atomosphere side
Magnetic fluid: standard
Water Cooling: no
Shaft Option: with clamp
NFT-020-BANC

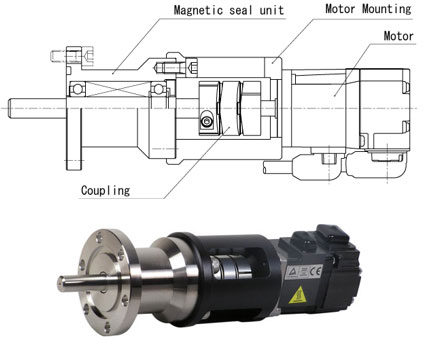

모터장착 참고도면
제작모델
Common Specification
Miniature F1B-B
Miniature F2B-B
Miniature BSB-B
Miniature LSB-B
Miniature FMB-B
Standard F1B-B
Standard FMB-B
Standard F2B-B
Standard KMB-B
Cantilever F1B-C
Cantilever FMB-C
Cantilever CMB-C
Standard F1T-B
Standard NFT-B
Cantilever F1T-C
규격품 공통 사양
일반적인 공통 사양
| Operating pressure | From atmospheric pressure to 10-6Pa | |
|---|---|---|
| Leakage rate (He) | Less than 9.9x10-11Pa - m3/sec | |
| Atmosphere | For vacuum, inert gas or reactive gas (*１) | |
| Materials | Housing | SUS 304 |
| Shaft | SUS 630 | |
| Pole piece | SUS 630 | |
| Bearing | SUJ2 | |
| O-ring | FKM | |
| Bearing lubricant |
Vacuum side : Fluorinated vacuum grease Atmosphere side : Anti-corrosive grease |
|
| Standard accessories (*2) |
O-ring Washer and Nut(LSB series) |
|
사용 온도범위-수냉식 없음
자기 씰 규격품을 수냉없이 안전하게 사용하기위한 기준의 사용 온도 범위입니다. 자기 씰 하우징 설치면 및 진공 측 샤프트 끝의 온도를 보여줍니다. 아래표에 나와있는 아상의 온도에서 자기 씰을 사용하기 위해서 수냉이 필요합니다.
| Magnetic fluid | Operating temperature range (no water-cooling) |
|---|---|
| Standard | 10 to 80°C |
| Anti-corrosion | 10 to 100°C |
| Low vapor pressure and anti-corrosion | 10 to 120°C |
기본구조및 베어링 배치 (두가지 구조)
1) Both side suspended struture
2) Cantilever structure
소형시리즈 F1B-***-B
개별형식 설명
| Model | F1B-004-B | F1B-005-B | F1B-006-B | F1B-008-B |
|---|---|---|---|---|
| A[mm] |
4g6
-0.004
-0.012 |
5g6
-0.004
-0.012 |
6g6
-0.004
-0.012 |
8g6
-0.005
-0.014 |
| B[mm] | 60 | 64 | 72 | 85 |
| C[mm] | 18 | 20 | 22 | 24 |
| D[mm] | 32 | 32 | 37 | 45 |
| E[mm] |
35f7
-0.025
-0.050 |
35f7
-0.025
-0.050 |
39f7
-0.025
-0.050 |
48f7
-0.025
-0.050 |
| F[mm] | 6 | 6 | 6 | 6 |
| H[mm] | 17 | 17 | 20 | 29 |
| J | 4-Φ4.5PCD27 | 4-Φ4.5PCD27 | 4-Φ4.5PCD31 | 6-Φ4.5PCD40 |
| O (O-ring) | P14 | P14 | P18 | G25 |
| Shaft Option | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) |
| S [mm] | 8 | 10 | 10 | 12 |
| V [mm] | 0.5 | 0.5 | 0.5 | 1 |
| Individual Spec (*1) | ||||
| Max, Rotating Rate [rpm](*2) | 7600 | 7600 | 6400 | 4800 |
| Rated Rotating Rate [rpm](*2) | 4000 | 4000 | 4000 | 4000 |
| Allowable Axial Load [N] | 12 | 22 | 35 | 72 |
| Allowable Radial Load [N] | 12 | 22 | 35 | 72 |
| Mass [kg] | 0.09 | 0.09 | 0.14 | 0.3 |
| Allowable Transmission Torque[N-m] | 0.6 | 0.7 | 1.4 | 3.6 |
소형시리즈 F2B-***-B
개별형식 설명
| Model | F2B-004-B | F2B-005-B | F2B-006-B | F2B-008-B |
|---|---|---|---|---|
| A[mm] | 4g6
-0.004 -0.012 |
5g6
-0.004 -0.012 |
6g6
-0.004 -0.012 |
8g6
-0.005 -0.014 |
| B[mm] | 60 | 64 | 72 | 85 |
| C[mm] | 44 | 46 | 53 | 63 |
| D[mm] | 26 | 26 | 31 | 39 |
| E[mm] | 41 | 41 | 43 | 53 |
| F[mm] | 6 | 6 | 6 | 6 |
| H[mm] | 18f7
-0.016 -0.034 |
18f7
-0.016 -0.034 |
20f7
-0.020 -0.041 |
28f7
-0.020 -0.041 |
| J | 4-Φ4.5PCD33 | 4-Φ4.5PCD33 | 4-Φ4.5PCD35 | 6-Φ4.5PCD45 |
| L[mm] | 5 | 5 | 6 | 6 |
| N[mm] | 17 | 17 | 19 | 27 |
| O (O-ring) | P20 | P20 | P22 | G30 |
| Shaft Option | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) |
| S [mm] | 8 | 10 | 10 | 12 |
| V [mm] | 0.5 | 0.5 | 0.5 | 1 |
| Individual Spec (*1) | ||||
| Max, Rotating Rate [rpm](*2) | 7600 | 7600 | 6400 | 4800 |
| Rated Rotating Rate [rpm](*2) | 4000 | 4000 | 4000 | 4000 |
| Allowable Axial Load [N] | 12 | 22 | 35 | 72 |
| Allowable Radial Load [N] | 12 | 22 | 35 | 72 |
| Mass [kg] | 0.1 | 0.11 | 0.14 | 0.29 |
| Allowable Transmission Torque[N-m] | 0.6 | 0.7 | 1.4 | 3.6 |
소형시리즈 BSB-***-B
개별형식 설명
| Model | BSB-004-B | BSB-005-B | BSB-006-B | BSB-008-B |
|---|---|---|---|---|
| A[mm] | 4g6
-0.004 -0.012 |
5g6
-0.004 -0.012 |
6g6
-0.004 -0.012 |
8g6
-0.005 -0.014 |
| B[mm] | 60 | 64 | 72 | 85 |
| C[mm] | 17 | 19 | 20 | 23 |
| E[mm] | 17 | 17 | 24 | 29 |
| F[mm] | 33 | 33 | 39 | 46 |
| L[mm] | 7 | 7 | 7 | 7 |
| O (O-ring) | P10 | P10 | P14 | P18 |
| R | M8 x 1 | M8 x 1 | M12 x 1 | M14 x 1 |
| Shaft Option | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) |
| S [mm] | 8 | 10 | 10 | 12 |
| V [mm] | 0.5 | 0.5 | 0.5 | 1 |
| Individual Spec (*1) | ||||
| Max, Rotating Rate [rpm](*2) | 7600 | 7600 | 6400 | 4800 |
| Rated Rotating Rate [rpm](*2) | 4000 | 4000 | 4000 | 4000 |
| Allowable Axial Load [N] | 12 | 22 | 35 | 72 |
| Allowable Radial Load [N] | 12 | 22 | 35 | 72 |
| Mass [kg] | 0.06 | 0.06 | 0.15 | 0.26 |
| Allowable Transmission Torque[N-m] | 0.6 | 0.7 | 1.4 | 3.6 |
소형시리즈 LSB-***-B
개별형식 설명
| Model | LSB-004-B | LSB-005-B | LSB-006-B | LSB-008-B |
|---|---|---|---|---|
| A[mm] | 4g6
-0.004 -0.012 |
5g6
-0.004 -0.012 |
6g6
-0.004 -0.012 |
8g6
-0.005 -0.014 |
| B[mm] | 60 | 64 | 72 | 85 |
| C[mm] | 42 | 44 | 49 | 59 |
| D[mm] | 24 | 24 | 27 | 35 |
| F[mm] | 8 | 8 | 10 | 10 |
| E[mm] | 29 | 29 | 31 | 41 |
| L[mm] | 18 | 18 | 21 | 29 |
| N[mm] | 18f7
-0.016 -0.034 |
18f7
-0.016 -0.034 |
20f7
-0.020 -0.041 |
28f7
-0.020 -0.041 |
| O (O-ring) | P20 | P20 | P22 | G30 |
| R | M18 x 1.5 | M18 x 1.5 | M20 x 1.5 | M28 x 1.5 |
| Accessory | ||||
| Nut (Width of two x Thickness) |
24 x 8 | 24 x 8 | 27 x 8 | 36 x 8 |
| Washer (Outside diameter x Thickness） |
Φ27 x 3 | Φ27 x 3 | Φ30 x 3 | Φ41 x 3 |
| Shaft Option | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) |
| S [mm] | 8 | 10 | 10 | 12 |
| V [mm] | 0.5 | 0.5 | 0.5 | 1 |
| Individual Spec (*1) | ||||
| Max, Rotating Rate [rpm](*2) | 7600 | 7600 | 6400 | 4800 |
| Rated Rotating Rate [rpm](*2) | 4000 | 4000 | 4000 | 4000 |
| Allowable Axial Load [N] | 12 | 22 | 35 | 72 |
| Allowable Radial Load [N] | 12 | 22 | 35 | 72 |
| Mass [kg] | 0.08 | 0.09 | 0.14 | 0.29 |
| Allowable Transmission Torque[N-m] | 0.6 | 0.7 | 1.4 | 3.6 |
소형시리즈 FMB-***-B
개별형식 설명
| Model | FMB-004-B | FMB-005-B | FMB-006-B | FMB-008-B |
|---|---|---|---|---|
| A[mm] | 4g6
-0.004 -0.012 |
5g6
-0.004 -0.012 |
6g6
-0.004 -0.012 |
8g6
-0.005 -0.014 |
| B[mm] | 60 | 64 | 72 | 85 |
| C[mm] | 18 | 20 | 22 | 24 |
| D[mm] | 32 | 32 | 37 | 45 |
| E[mm] | 35f7
-0.025 -0.050 |
35f7
-0.025 -0.050 |
39f7
-0.025 -0.050 |
48f7
-0.025 -0.050 |
| F[mm] | 4 | 4 | 6 | 6 |
| H[mm] | 29f7
-0.020 -0.041 |
29f7
-0.020 -0.041 |
33f7
-0.025 -0.050 |
42f7
-0.025 -0.050 |
| I[mm] | 17 | 17 | 20 | 29 |
| J | 4-Φ4.5PCD27 | 4-Φ4.5PCD27 | 4-Φ4.5PCD31 | 6-Φ4.5PCD40 |
| K | 4-M4PCD22 | 4-M4PCD22 | 4-M4PCD25 | 4-M4PCD34 |
| L[mm] | 4 | 4 | 5 | 6 |
| O (O-ring) | P14 | P14 | P18 | G25 |
| Shaft Option | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) | Flat Cut (Both ends) |
| S [mm] | 8 | 10 | 10 | 12 |
| V [mm] | 0.5 | 0.5 | 0.5 | 1 |
| Individual Spec (*1) | ||||
| Max, Rotating Rate [rpm](*2) | 7600 | 7600 | 6400 | 4800 |
| Rated Rotating Rate [rpm](*2) | 4000 | 4000 | 4000 | 4000 |
| Allowable Axial Load [N] | 12 | 22 | 35 | 72 |
| Allowable Radial Load [N] | 12 | 22 | 35 | 72 |
| Mass [kg] | 0.09 | 0.1 | 0.16 | 0.34 |
| Allowable Transmission Torque[N-m] | 0.6 | 0.7 | 1.4 | 3.6 |
표준사양 시리즈 F1B-***-B***
개별형식 설명
| Model | F1B-010-B | F1B-012-B | F1B-015-B | F1B-020-B | F1B-025-B | F1B-030-B |
|---|---|---|---|---|---|---|
| A[mm] | 10g6
-0.005 -0.014 |
12g6
-0.006 -0.017 |
15g6
-0.006 -0.017 |
20g6
-0.007 -0.020 |
25g6
-0.007 -0.020 |
30g6
-0.007 -0.020 |
| B[mm] | 112 | 112 | 128 | 144 | 148 | 169 |
| C[mm] | 30 | 30 | 40 | 45 | 50 | 60 |
| D[mm] | 57 | 57 | 58 | 67 | 61 | 61 |
| E[mm] | 64f7
-0.030 -0.060 |
64f7
-0.030 -0.060 |
74f7
-0.030 -0.060 |
84f7
-0.036 -0.071 |
89f7
-0.036 -0.071 |
89f7
-0.036 -0.071 |
| F[mm] | 8 | 8 | 8 | 10 | 12 | 12 |
| H[mm] | 40 | 40 | 47 | 54 | 59 | 59 |
| J | 6-Φ6.5PCD54 | 6-Φ6.5PCD54 | 6-Φ6.5PCD61 | 6-Φ9PCD70 | 6-Φ9PCD75 | 6-Φ9PCD75 |
| O (O-ring) | G35 | G35 | G40 | G45 | G50 | G50 |
| Water-cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G [mm] | 19 | 19 | 20 | 22 | 17 | 17 |
| Shaft Option 1 | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) |
| S [mm] | 16 | 19 | 26 | 31 | 36 | 46 |
| T [mm] | 2.5
+0.1 0 |
2.5
+0.1 0 |
3
+0.1 0 |
3.5
+0.1 0 |
4
+0.1 0 |
5
+0.1 0 |
| U [mm] | 4
+0.040 0 |
4
+0.040 0 |
5
+0.040 0 |
6
+0.040 0 |
8
+0.040 0 |
10
+0.040 0 |
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) | ||||
| S [mm] | 15 | 18 | ||||
| V [mm] | 1 | 1 | ||||
| Individual Spec (*1) | ||||||
| Max, Rotating Rate [rpm](*2) | 3200 | 3200 | 2200 | 1900 | 1300 | 1300 |
| Rated Rotating Rate [rpm](*2) | 2600 | 3200 | 2200 | 1900 | 1300 | 1300 |
| Allowable Axial Load [N] | 118 | 137 | 141 | 213 | 115 | 140 |
| Allowable Radial Load [N] | 118 | 137 | 141 | 213 | 115 | 140 |
| Mass [kg] | 0.7 | 0.7 | 1 | 1.5 | 1.9 | 2.2 |
| Allowable Transmission Torque(N-m) | 9 | 13 | 30 | 60 | 140 | 210 |
표준사양 시리즈 FMB-***-B***
개별형식 설명
| Model | FMB-010-B | FMB-012-B | FMB-015-B |
|---|---|---|---|
| A[mm] | 10g6
-0.005 -0.014 |
12g6
-0.006 -0.017 |
15g6
-0.006 -0.017 |
| B[mm] | 112 | 112 | 128 |
| C[mm] | 30 | 30 | 40 |
| D[mm] | 57 | 57 | 58 |
| E[mm] | 64f7
-0.030 -0.060 |
64f7
-0.030 -0.060 |
74f7
-0.030 -0.060 |
| F[mm] | 8 | 8 | 8 |
| H[mm] | 52f7
-0.030 -0.060 |
52f7
-0.030 -0.060 |
56f7
-0.030 -0.060 |
| I[mm] | 40 | 40 | 47 |
| J | 6-Φ6.5PCD54 | 6-Φ6.5PCD54 | 6-Φ6.5PCD61 |
| K | 4-M6 Depth 10PCD42 | 4-M6 Depth 10PCD42 | 4-M6 Depth 10PCD47 |
| L[mm] | 20 | 20 | 20 |
| O (O-ring) | G35 | G35 | G40 |
| Water-cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G [mm] | 19 | 19 | 20 |
| Shaft Option 1 | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) |
| S [mm] | 16 | 19 | 26 |
| T [mm] | 2.5
+0.1 0 |
2.5
+0.1 0 |
3
+0.1 0 |
| U [mm] | 4
+0.040 0 |
4
+0.040 0 |
5
+0.040 0 |
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) | |
| S [mm] | 15 | 18 | |
| V [mm] | 1 | 1 | |
| Individual Spec (*1) | |||
| Max, Rotating Rate [rpm](*2) | 3200 | 3200 | 2200 |
| Rated Rotating Rate [rpm](*2) | 2600 | 3200 | 2200 |
| Allowable Axial Load [N] | 118 | 137 | 141 |
| Allowable Radial Load [N] | 118 | 137 | 141 |
| Mass [kg] | 0.8 | 0.8 | 1.1 |
| Allowable Transmission Torque[N-m] | 9 | 13 | 30 |
표준사양 시리즈 F2B-***-B***
개별형식 설명
| Model | F2B-010-B | F2B-012-B | F2B-015-B | F2B-020-B | F2B-025-B | F2B-030-B |
|---|---|---|---|---|---|---|
| A[mm] | 10g6
-0.005 -0.014 |
12g6
-0.006 -0.017 |
15g6
-0.006 -0.017 |
20g6
-0.007 -0.020 |
25g6
-0.007 -0.020 |
30g6
-0.007 -0.020 |
| B[mm] | 112 | 112 | 128 | 144 | 148 | 169 |
| C[mm] | 79 | 79 | 88 | 102 | 99 | 109 |
| D[mm] | 49 | 49 | 48 | 57 | 49 | 49 |
| E[mm] | 69 | 69 | 79 | 89 | 94 | 94 |
| F[mm] | 8 | 8 | 10 | 10 | 12 | 12 |
| H[mm] | 36f7
-0.025 -0.050 |
36f7
-0.025 -0.050 |
42f7
-0.025 -0.050 |
51f7
-0.030 -0.060 |
56f7
-0.030 -0.060 |
56f7
-0.030 -0.060 |
| J | 6-Φ6.5PCD58 | 6-Φ6.5PCD58 | 6-Φ6.5PCD66 | 6-Φ9PCD75 | 6-Φ9PCD80 | 6-Φ9PCD80 |
| M[mm] | 6 | 6 | 6 | 6 | 6 | 6 |
| N[mm] | 35 | 35 | 41 | 50 | 55 | 55 |
| O | G40 | G40 | G45 | G55 | G60 | G60 |
| Shaft Option 1 | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) |
| S [mm] | 16 | 19 | 26 | 31 | 36 | 46 |
| T [mm] | 2.5
+0.1 0 |
2.5
+0.1 0 |
3
+0.1 0 |
3.5
+0.1 0 |
4
+0.1 0 |
5
+0.1 0 |
| U [mm] | 4
+0.040 0 |
4
+0.040 0 |
5
+0.040 0 |
6
+0.040 0 |
8
+0.040 0 |
10
+0.040 0 |
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) | ||||
| S [mm] | 15 | 18 | ||||
| V [mm] | 1 | 1 | ||||
| Individual Spec (*1) | ||||||
| Max, Rotating Rate [rpm](*2) | 3200 | 3200 | 2200 | 1900 | 1300 | 1300 |
| Rated Rotating Rate [rpm](*2) | 2600 | 3200 | 2200 | 1900 | 1300 | 1300 |
| Allowable Axial Load [N] | 118 | 137 | 141 | 213 | 115 | 140 |
| Allowable Radial Load [N] | 118 | 137 | 141 | 213 | 115 | 140 |
| Mass [kg] | 0.7 | 0.7 | 1 | 1.5 | 1.8 | 2.1 |
| Allowable Transmission Torque(N-m) | 9 | 13 | 30 | 60 | 140 | 210 |
표준사양 시리즈 Series KMB-***-B***
개별형식 설명
| Model | KMB-006-B | KMB-010-B |
|---|---|---|
| A[mm] | 6g6
-0.004 -0.012 |
10g6
-0.005 -0.014 |
| B[mm] | 72 | 112 |
| C[mm] | 37 | 50 |
| D[mm] | 22 | 37 |
| E[mm] | 40 | 55 |
| H[mm] | 33f7
-0.025 -0.050 |
52f7
-0.030 -0.060 |
| I[mm] | 20 | 43 |
| K | 4-M4PCD25 | 4-M6 Depth 10PCD42 |
| L[mm] | 5 | 18.5 |
| M[mm] | 15 | 20 |
| N[mm] | 20 | 34 |
| NW standard | NW25 | NW40 |
| Shaft Option 1 | Keyway (Both ends) | |
| S [mm] | 16 | |
| T [mm] | 2.5
+0.1 0 |
|
| U [mm] | 4
+0.040 0 |
|
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) |
| S [mm] | 10 | 15 |
| V [mm] | 0.5 | 1 |
| Individual Spec (*1) | ||
| Max, Rotating Rate [rpm](*2) | 6400 | 3200 |
| Rated Rotating Rate [rpm](*2) | 4000 | 2600 |
| Allowable Axial Load [N] | 35 | 118 |
| Allowable Radial Load [N] | 35 | 118 |
| Mass [kg] | 0.15 | 0.7 |
| Allowable Transmission Torque[N-m] | 1.4 | 9 |
Cantilever Series F1B-***-C***
개별형식 설명
| Model | F1B-010-C | F1B-012-C | F1B-015-C | F1B-020-C | F1B-025-C |
|---|---|---|---|---|---|
| A[mm] | 10g6
-0.005 -0.014 |
12g6
-0.006 -0.017 |
15g6
-0.006 -0.017 |
20g6
-0.007 -0.020 |
25g6
-0.007 -0.020 |
| B[mm] | 134 | 134 | 155 | 180 | 201 |
| C[mm] | 30 | 30 | 40 | 45 | 50 |
| D[mm] | 79 | 79 | 85 | 103 | 114 |
| E[mm] | 64f7
-0.030 -0.060 |
64f7
-0.030 -0.060 |
74f7
-0.030 -0.060 |
94f7
-0.036 -0.071 |
99f7
-0.036 -0.071 |
| F[mm] | 8 | 8 | 8 | 10 | 10 |
| H[mm] | 40 | 40 | 47 | 59 | 64 |
| J | 6-Φ6.5PCD54 | 6-Φ6.5PCD54 | 6-Φ6.5PCD61 | 6-Φ9PCD77 | 6-Φ9PCD82 |
| O (O-ring) | G35 | G35 | G40 | G55 | G60 |
| Water-cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G[mm] | 12 | 12 | 12 | 11 | 11 |
| Shaft Option 1 | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) |
| S [mm] | 16 | 19 | 26 | 31 | 36 |
| T [mm] | 2.5
+0.1 0 |
2.5
+0.1 0 |
3
+0.1 0 |
3.5
+0.1 0 |
4
+0.1 0 |
| U [mm] | 4
+0.040 0 |
4
+0.040 0 |
5
+0.040 0 |
6
+0.040 0 |
8
+0.040 0 |
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) | |||
| S [mm] | 15 | 18 | |||
| V [mm] | 1 | 1 | |||
| Individual Spec (*1) | |||||
| Max, Rotating Rate [rpm](*2) (When water-cooled) |
4800 (16000) |
4800 (16000) |
3400 (11000) |
2900 (9500) |
1900 (6500) |
| Rated Rotating Rate [rpm](*2) (When water-cooled) |
2200 | 2700 | 3300 | 2900 (3300) |
1900 (3800) |
| Allowable Axial Load [N] | 29 | 29 | 29 | 59 | 78 |
| Allowable Radial Load [N] | 55 | 76 | 83 | 181 | 262 |
| Mass [kg] | 0.9 | 0.9 | 1.4 | 2.7 | 3.5 |
| Allowable Transmission Torque[N-m] | 9 | 13 | 30 | 60 | 140 |
Cantilever Series FMB-***-C***
개별형식 설명
| Model | FMB-010-C | FMB-012-C | FMB-015-C |
|---|---|---|---|
| A[mm] | 10g6
-0.005 -0.014 |
12g6
-0.006 -0.017 |
15g6
-0.006 -0.017 |
| B[mm] | 134 | 134 | 155 |
| C[mm] | 30 | 30 | 40 |
| D[mm] | 79 | 79 | 85 |
| E[mm] | 64f7
-0.030 -0.060 |
64f7
-0.030 -0.060 |
74f7
-0.030 -0.060 |
| F[mm] | 8 | 8 | 8 |
| H[mm] | 52f7
-0.030 -0.060 |
52f7
-0.030 -0.060 |
56f7
-0.030 -0.060 |
| I[mm] | 40 | 40 | 47 |
| J | 6-Φ6.5PCD54 | 6-Φ6.5PCD54 | 6-Φ6.5PCD61 |
| K | 4-M6 Depth 10PCD42 | 4-M6 Depth 10PCD42 | 4-M6 Depth 10PCD47 |
| L[mm] | 20 | 20 | 20 |
| O (O-ring) | G35 | G35 | G40 |
| Water Cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G[mm] | 12 | 12 | 12 |
| Shaft Option 1 | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) |
| S [mm] | 16 | 19 | 26 |
| T [mm] | 2.5
+0.1 0 |
2.5
+0.1 0 |
3
+0.1 0 |
| U [mm] | 4
+0.040 0 |
4
+0.040 0 |
5
+0.040 0 |
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) | |
| S [mm] | 15 | 18 | |
| V [mm] | 1 | 1 | |
| Individual Spec (*1) | |||
| Max, Rotating Rate [rpm](*2) (When water-cooled) |
4800 (16000) |
4800 (16000) |
3400 (11000) |
| Rated Rotating Rate [rpm](*2) | 2200 | 2700 | 3300 |
| Allowable Axial Load [N] | 29 | 29 | 29 |
| Allowable Radial Load [N] | 55 | 76 | 83 |
| Mass [kg] | 1 | 1 | 1.5 |
| Allowable Transmission Torque[N-m] | 9 | 13 | 30 |
Cantilever Series CMB-***-C***
개별형식 설명
| Model | CMB-010-C | CMB-012-C | CMB-015-C |
|---|---|---|---|
| A[mm] | 10g6
-0.005 -0.014 |
12g6
-0.006 -0.017 |
15g6
-0.006 -0.017 |
| B[mm] | 153 | 153 | 179 |
| C[mm] | 45 | 45 | 55 |
| D[mm] | 83 | 83 | 94 |
| E[mm] | 69.5 | 69.5 | 114 |
| F[mm] | 13 | 13 | 18 |
| H[mm] | 52f7
-0.030 -0.060 |
52f7
-0.030 -0.060 |
56f7
-0.030 -0.060 |
| I[mm] | 44 | 44 | 56 |
| J | 6-Φ6.6PCD58.7 | 6-Φ6.6PCD58.7 | 8-Φ8.4PCD92.1 |
| K | 4-M6 Depth 10PCD42 | 4-M6 Depth 10PCD42 | 4-M6 Depth 10PCD47 |
| L[mm] | 20 | 20 | |
| ICF standard | ICF70 | ICF70 | ICF114 |
| Water-cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G[mm] | 11 | 11 | 11 |
| Shaft Option 1 | Keyway (Both ends) | Keyway (Both ends) | Keyway (Both ends) |
| S [mm] | 16 | 19 | 26 |
| T [mm] | 2.5
+0.1 0 |
2.5
+0.1 0 |
3
+0.1 0 |
| U [mm] | 4
+0.040 0 |
4
+0.040 0 |
5
+0.040 0 |
| Shaft Option 2 | Flat Cut (Both ends) | Flat Cut (Both ends) | |
| S [mm] | 15 | 18 | |
| V [mm] | 1 | 1 | |
| Individual Spec (*1) | |||
| Max, Rotating Rate [rpm](*2) (When water-cooled) |
4800 （16000） |
4800 （16000） |
3400 （11000） |
| Rated Rotating Rate [rpm](*2) (When water-cooled) |
1700 | 2100 （2500） |
2600 |
| Allowable Axial Load [N] | 29 | 29 | 29 |
| Allowable Radial Load [N] | 45 | 64 | 69 |
| Mass [kg] | 1.3 | 1.3 | 3 |
| Allowable Transmission Torque[N-m] | 9 | 13 | 30 |
표준사양 시리즈 F1T-***-B***
개별형식 설명
| Model | F1T-010-B | F1T-012-B | F1T-015-B | F1T-020-B | F1T-025-B | F1T-030-B | F1T-040-B | F1T-050-B | F1T-075-B |
|---|---|---|---|---|---|---|---|---|---|
| A[mm] | 10H7
+0.015 0 |
12H7
+0.018 0 |
15H7
+0.018 0 |
20H7
+0.021 0 |
25H7
+0.021 0 |
30H7
+0.021 0 |
40H7
+0.025 0 |
50H7
+0.025 0 |
75H7
+0.030 0 |
| B[mm] | 60 | 60 | 69 | 63 | 65 | 71 | 72 | 84 | 94 |
| D[mm] | 58 | 58 | 67 | 61 | 63 | 69 | 70 | 82 | 92 |
| E[mm] | 74f7
-0.030 -0.060 |
74f7
-0.030 -0.060 |
84f7
-0.036 -0.071 |
89f7
-0.036 -0.071 |
104f7
-0.036 -0.071 |
109f7
-0.036 -0.071 |
119f7
-0.036 -0.071 |
134f7
-0.043 -0.082 |
168f7
-0.043 -0.083 |
| F[mm] | 8 | 8 | 10 | 12 | 12 | 12 | 12 | 12 | 12 |
| H[mm] | 47 | 47 | 54 | 59 | 70 | 75 | 85 | 98 | 132 |
| J | 6-Φ 6.5 PCD61 |
6-Φ 6.5 PCD61 |
6-Φ 9 PCD70 |
6-Φ 9 PCD75 |
6-Φ 9 PCD88 |
6-Φ 9 PCD93 |
8-Φ 9 PCD103 |
8-Φ 9 PCD116 |
8-Φ 9 PCD150 |
| O1 (O-ring) | G40 | G40 | G45 | G50 | G60 | G70 | G80 | G90 | G120 |
| O2 (O-ring) | S10 | S12 | S15 | S20 | S25 | S30 | S40 | S50 | S75 |
| P[mm] | 17 | 17 | 20 | 30 | 35 | 40 | 50 | 60 | 90 |
| Q1[mm] | 7 | 7 | 7 | 8 | 8 | 9 | 10 | 10 | 11 |
| Q2[mm] | 9 | 9 | 10 | 10 | 11 | 12 | 12 | 12 | 15 |
| Water-cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G [mm] | 20 | 20 | 22 | 17 | 18 | 21 | 21 | 22 | 22 |
| Shaft Option | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp |
| W [mm] | 11 | 11 | 11 | 13 | 15 | 15 | 15 | 15 | 19 |
| X [mm] | 35 | 37 | 40 | 45 | 57 | 61 | 73 | 83 | 114 |
| Y (Hexagon socket head cap screw） | M4 x 10 | M4 x 10 | M4 x 10 | M4 x 10 | M6 x 12 | M6 x 12 | M6 x 16 | M6 x 16 | M8 x 20 |
| Individual Spec (*1) | |||||||||
| Max, Rotating Rate [rpm](*2) | 2200 | 2200 | 1900 | 1300 | 1100 | 1000 | 800 | 600 | 400 |
| Rated Rotating Rate [rpm](*2) | 2200 | 2200 | 1900 | 1300 | 1100 | 1000 | 800 | 600 | 400 |
| Allowable Axial Load [N] | 252 | 252 | 390 | 300 | 440 | 550 | 580 | 810 | 800 |
| Allowable Radial Load [N] | 252 | 252 | 390 | 300 | 440 | 550 | 580 | 810 | 800 |
| Mass [kg] | 0.9 | 0.9 | 1.3 | 1.5 | 2 | 2.4 | 2.9 | 4.2 | 7.5 |
| Recommended shaft dia. [mm] (＊3) | 10f7
-0.013 -0.028 |
12f7
-0.016 -0.034 |
15f7
-0.016 -0.034 |
20f7
-0.020 -0.041 |
25f7
-0.020 -0.041 |
30f7
-0.020 -0.041 |
40f7
-0.025 -0.050 |
50f7
-0.025 -0.050 |
75f6
-0.030 -0.049 |
표준사양 시리즈 NFT-***-B***
개별형식 설명
| Model | NFT- 010-B | NFT- 012-B | NFT- 015-B | NFT- 020-B | NFT- 025-B | NFT- 030-B | NFT- 040-B | NFT- 050-B | NFT- 075-B |
|---|---|---|---|---|---|---|---|---|---|
| A[mm] | 10H7
+0.015 0 |
12H7
+0.018 0 |
15H7
+0.018 0 |
20H7
+0.021 0 |
25H7
+0.021 0 |
30H7
+0.021 0 |
40H7
+0.025 0 |
50H7
+0.025 0 |
75H7
+0.030 0 |
| B[mm] | 60 | 60 | 69 | 63 | 65 | 71 | 72 | 84 | 94 |
| D[mm] | 58 | 58 | 67 | 61 | 63 | 69 | 70 | 82 | 92 |
| E[mm] | 40g6
-0.009 -0.025 |
40g6
-0.009 -0.025 |
49g6
-0.009 -0.025 |
55g6
-0.010 -0.029 |
63g6
-0.010 -0.029 |
73g6
-0.010 -0.029 |
83g6
-0.012 -0.034 |
95g6
-0.012 -0.034 |
126g6
-0.014 -0.039 |
| O1 (O-ring) | S36 | S36 | S45 | S50 | S60 | S70 | S80 | S90 | S120 |
| O2 (O-ring) | S30 | S30 | S38 | S44 | S50 | S60 | G70 | G80 | G110 |
| O3 (O-ring) | S10 | S12 | S15 | S20 | S25 | S30 | S40 | S50 | S75 |
| P[mm] | 17 | 17 | 20 | 30 | 35 | 40 | 50 | 60 | 90 |
| Q1[mm] | 6 | 6 | 6 | 7 | 7 | 8 | 9 | 9 | 10 |
| Q2[mm] | 8 | 8 | 9 | 9 | 10 | 11 | 11 | 11 | 14 |
| Q3[mm] | 7 | 7 | 7 | 8 | 8 | 9 | 10 | 10 | 11 |
| Q4[mm] | 9 | 9 | 10 | 10 | 11 | 12 | 12 | 12 | 15 |
| Shaft Option | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp |
| W [mm] | 11 | 11 | 11 | 13 | 15 | 15 | 15 | 15 | 19 |
| X [mm] | 35 | 37 | 40 | 45 | 57 | 61 | 73 | 83 | 114 |
| Y (Hexagon socket head cap screw） | M4 x 10 | M4 x 10 | M4 x 10 | M4 x 10 | M6 x 12 | M6 x 12 | M6 x 16 | M6 x 16 | M8 x 20 |
| Individual Spec (*1) | |||||||||
| Max, Rotating Rate [rpm](*2) | 2200 | 2200 | 1900 | 1300 | 1100 | 1000 | 800 | 600 | 400 |
| Rated Rotating Rate [rpm](*2) | 2200 | 2200 | 1900 | 1300 | 1100 | 1000 | 800 | 600 | 400 |
| Allowable Axial Load [N] | 252 | 252 | 390 | 300 | 440 | 550 | 580 | 810 | 800 |
| Allowable Radial Load [N] | 252 | 252 | 390 | 300 | 440 | 550 | 580 | 810 | 800 |
| Mass [kg] | 0.5 | 0.5 | 0.8 | 1.0 | 1.3 | 1.9 | 2.3 | 3.3 | 5.8 |
| Recommended shaft dia. [mm] (＊3) | 10f7
-0.013 -0.028 |
12f7
-0.016 -0.034 |
15f7
-0.016 -0.034 |
20f7
-0.020 -0.041 |
25f7
-0.020 -0.041 |
30f7
-0.020 -0.041 |
40f7
-0.025 -0.050 |
50f7
-0.025 -0.050 |
75f6
-0.030 -0.049 |
| Recommended housing bore [mm] (＊3) | 40H7
+0.025 0 |
40H7
+0.025 0 |
49H7
+0.025 0 |
55H7
+0.030 0 |
63H7
+0.030 0 |
73H7
+0.030 0 |
83H7
+0.035 0 |
95H7
+0.035 0 |
126H7
+0.040 0 |
Cantilever Series F1T-***-C***
개별형식 설명
| Model | F1T- 020-C | F1T- 025-C | F1T- 030-C | F1T- 040-C | F1T- 050-C | F1T- 075-C |
|---|---|---|---|---|---|---|
| A[mm] | 20H7
+0.021 0 |
25H7
+0.021 0 |
30H7
+0.021 0 |
40H7
+0.025 0 |
50H7
+0.025 0 |
75H7
+0.030 0 |
| B[mm] | 116 | 118 | 134 | 65 | 65 | 74 |
| D[mm] | 114 | 116 | 132 | 63 | 63 | 72 |
| E[mm] | 99f7
-0.036 -0.071 |
109f7
-0.036 -0.071 |
114f7
-0.036 -0.071 |
128f7
-0.043 -0.083 |
138f7
-0.043 -0.083 |
179f7
-0.043 -0.083 |
| F[mm] | 10 | 10 | 12 | 10 | 10 | 12 |
| H[mm] | 64 | 74 | 80 | 92 | 102 | 143 |
| J | 6-Φ9PCD82 | 6-Φ9PCD92 | 6-Φ9PCD98 | 8-Φ9PCD110 | 8-Φ9PCD120 | 8-Φ9PCD161 |
| O1 (O-ring) | G60 | G65 | G70 | G85 | G95 | G135 |
| O2 (O-ring) | S20 | S25 | S30 | S40 | S50 | S75 |
| P[mm] | 30 | 35 | 40 | 50 | 60 | 90 |
| Q1[mm] | 10 | 10 | 10 | 10 | 10 | 13 |
| Q2[mm] | 12 | 12 | 13 | 12 | 12 | 16 |
| Water-cooling Option | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 | 2-Rc1/8 |
| G [mm] | 11 | 11 | 11 | 12 | 12 | 11 |
| Shaft Option | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp |
| W [mm] | 13 | 15 | 15 | 15 | 15 | 19 |
| X [mm] | 45 | 57 | 61 | 73 | 83 | 114 |
| Y (Hexagon socket head cap screw） | M4 x 10 | M6 x 12 | M6 x 12 | M6 x 16 | M6 x 16 | M8 x 20 |
| Individual Spec (*1) | ||||||
| Max, Rotating Rate [rpm](*2) (When water-cooled) |
1900 （6500） |
1600 （5500） |
1400 （5000） |
1100 | 1000 | 600 |
| Rated Rotating Rate [rpm](*2) | 1900 | 1600 | 1400 | 1100 | 1000 | 600 |
| Allowable Axial Load [N] | 78 | 120 | 120 | 835 | 900 | 1500 |
| Allowable Radial Load [N] | 391 | 496 | 562 | 835 | 900 | 1500 |
| Mass [kg] | 2.8 | 3.7 | 4.8 | 3.1 | 3.6 | 7.4 |
| Recommended shaft dia. [mm] (＊3) | 20f7
-0.020 -0.041 |
25f7
-0.020 -0.041 |
30f7
-0.020 -0.041 |
40f7
-0.025 -0.050 |
50f7
-0.025 -0.050 |
75f6
-0.030 -0.049 |
